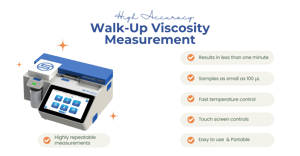

microVISC™ PRO — Portable, Small Sample Viscometer

Small Samples

Measure samples as small as 100 μL.

Easy Measurements

Anyone can run samples with the integrated display and walk-up interface.

Quick Temperature Control

Measure your samples quickly at a variety of temperatures.

Less Than 1 Minute

Each sample can be measured in less than one minute.

SPECIFICATIONS

Minimum Sample Volume – 100 µL
Touchscreen Controls with 7" LCD
Fast Temperature Controller Built-in from 15°C – 60°C within 10 minutes
Temperature Sensor Built-In
Small Footprint
Accuracy up to 2% of Reading
21 CFR Compliant

Works without companion software
Characterization of Newtonian and Non-Newtonian Solutions
Shear Rate Range, 1 ~ 8,300
Wide Viscosity Range: 0.3 ~ 650,000 mPa-s (or cP)
Temporary Battery Operation
Unlimited Corded Operation
Repeatable Measurement up to 0.5% of Reading

*Available chips include A05, B05, C20, E20

HOW IT WORKS

Understanding Fluid Behavior — Measuring Absolute Viscosity

With VROC^® Technology, RheoSense took the standard principles of rheometry and created a dynamic micro-sample viscometer by adding microfluidics while reducing the size of the device with MEMS (micro-electrical mechanical systems) manufacturing. The result was a new platform which offers capabilities that are well beyond the limits of conventional viscometers in not only the sample volumes required, but the measurement range and precision.

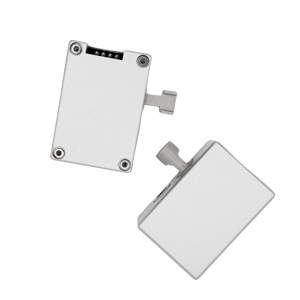

Photograph of VROC chip assembly for m-VROC II viscometer

"The RheoSense viscometer enabled us to quickly and accurately measure small aliqouts of sample which was necessary due to limited amounts of biological material. Additionally the low volume allowed us to gather many replicates of data in order to accurately assess biological variability between and across samples. This capability allowed us to have much more robust data collection and higher sample sizes for each point on the curve as compared to using traditional capillary viscometry."

ANNIE JENSENCYTOVALE

“Thanks so much for the great instrumentation, it has already benefitted the site with accurate information at a much lower volume of sample and it is easy to use. Very happy with it!”

KristiNovo Nordisk

microVISC PRO

Walk-Up Viscometer

Now Available for Pre-Order!
