Chip Cleaning Station

Time to clean? Let our automated VROC® Chip Cleaning Station do the dirty work.

One Button Cleaning

Because cleaning should be simple!

(3) Solvent bottles for optimized cleaning

Easy operation - touch screen user interface

Run factory cleaning protocols or customize




Automate Your Cleaning

The wait is over! The highly requested chip cleaning station, capable of cleaning VROC® chips, under 10 minutes* is here!

The chip cleaning station allows for a selection of 3 different solvents along with cleaning protocols.

All of this is accessible with a built-in touch screen display.

*This is depend on chip type and cleaning protocol but cleanings

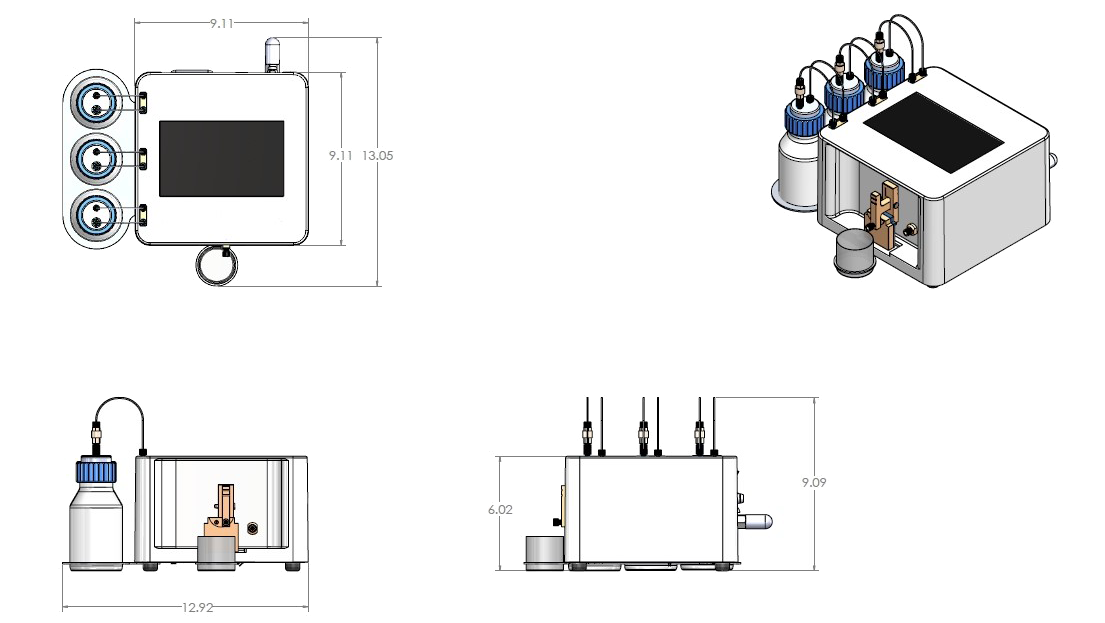

CCS



m-VROC®CCS - mVROC - Final (no BDG)-2

Dimensions: 9.1" x 9.1" x 6 "
(231 mm x 231 mm x 153 mm)
Dimensions with solvent bottles
12.9" x 9.1" x 6"
Power Consumption
50 W
Weight: 5 lbs (2.3 kg) - without solvent bottles



e-VROC®CCS - mVROC - Final (no BDG)-2

Dimensions: 9.1" x 9.1" x 6 "
(231 mm x 231 mm x 153 mm)
Dimensions with solvent bottles
12.9" x 9.1" x 6"
Power Consumption
50 W
Weight: 5 lbs (2.3 kg) - without solvent bottles



microVISC™
Chip Cleaning Station - No BDG (microVISC)

Dimensions: 9.1" x 9.1" x 6 "
(231 mm x 231 mm x 153 mm)
Dimensions with solvent bottles
12.9" x 9.1" x 6"
Power Consumption
50 W
Weight: 5 lbs (2.3 kg) - without solvent bottles

microVISC-m™
Chip Cleaning Station - No BDG (microVISC)

Dimensions: 9.1" x 9.1" x 6 "
(231 mm x 231 mm x 153 mm)
Dimensions with solvent bottles
12.9" x 9.1" x 6"
Power Consumption
50 W
Weight: 5 lbs (2.3 kg) - without solvent bottles
View Applications
Chip Cleaning Station

Spend less time cleaning and more time measuring samples!

The RheoSense Chip Cleaning Station is designed to clean m-VROC® or microVISC™ chips in under 10 minutes*. This allows for autonomous cleaning of chips without having to load up solvents every time, use up instrument consumables, or occupy instrument time. The built-in touch screen display makes operation easy. The unit can select from 3 different solvents and can run factory or customized cleaning protocols.

*This is depend on chip type and cleaning protocol but cleanings
