Back Loading Protocol

Syringe Back Loading Protocol - Standard of Procedure (Updated 2/19/2024)

Back Loading a m-VROC Compatible Syringe with a Very Viscous Sample


This document is to outline step by step instructions on how to load very viscous samples or samples that cannot be properly loaded with your peek union and needle accessory that comes with your m-VROC.

Materials you will need:

  • Norm-Ject-F Syringe (appropriate for 0.5 mL or 1 mL syringes)
    Back Loading Protocol Img 1
  • Your m-VROC Syringe

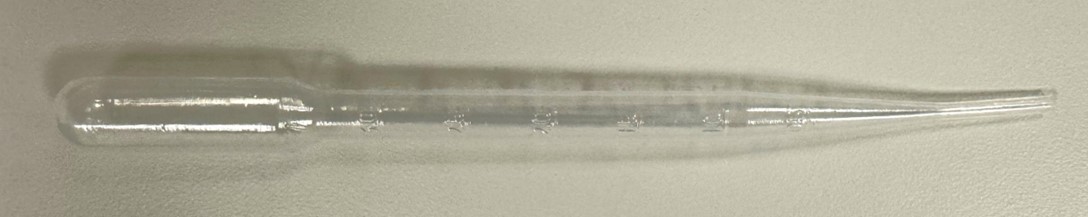

  • Dropper appropriate for 10 mL syringes

Back Loading Protocol Img 2

For Norm-Ject-f Syringe Syringe Backloading:
To backload a syringe, take the Norm-Ject-f syringe and load the sample into it. If loading into a 0.5 mL syringe, load the sample past the 0.5 mL mark if there is sample available. For the 1 mL, load the sample into the whole syringe if there is sample available.

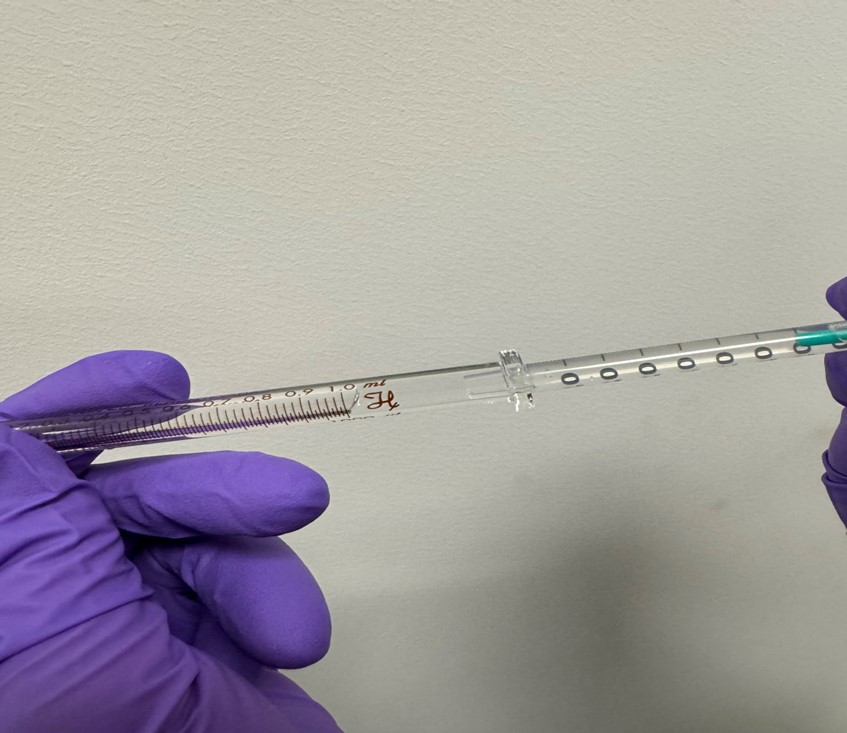

Place the end of the syringe into the end of the barrel. SLOWLY, start to dispense the sample into the barrel. Ideally, the sample should evenly flow down the barrel.

Back Loading Protocol Img 3

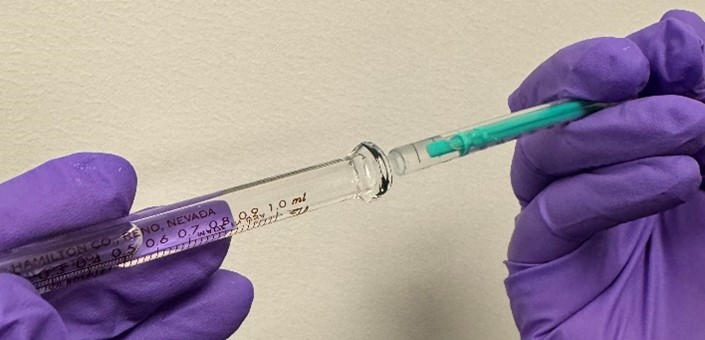

With the last 100 to 200 μL of the sample while in the syringe, continue to dispense the sample while SLOWLY moving the syringe out. The sample should be at the end of the barrel near the hole.

Back Loading Protocol Img 4

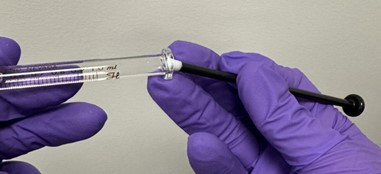

Carefully place the plunger of the syringe into the back of the barrel. There shouldn’t be any gaps or air between the plunger and the sample. Note: Having the plunger at an angle can help minimize bubbles forming.

Back Loading Protocol Img 5

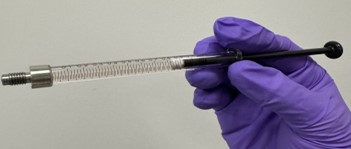

Push the plunger into the barrel to have the sample be at the beginning of the syringe.

Back Loading Protocol Img 6

Proceed to testing the sample as normal.

Back Loading with a Dropper:

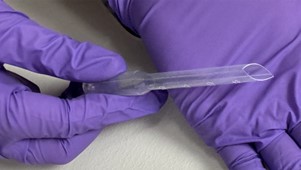

Take a plastic disposable dropper and cut the end off at an angle to create almost a shovel.

Back Loading Protocol Img 7

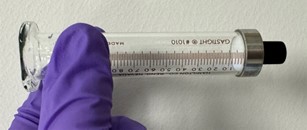

Close the end of the 10 mL syringe with a cap stopper to prevent sample from flowing out of the barrel.

Back Loading Protocol Img 8

Fill the dropper with sample. Try not to have bubbles present in your sample. Note: depending on the sample this may be difficult to accomplish. Proceed with loading the sample anyways.

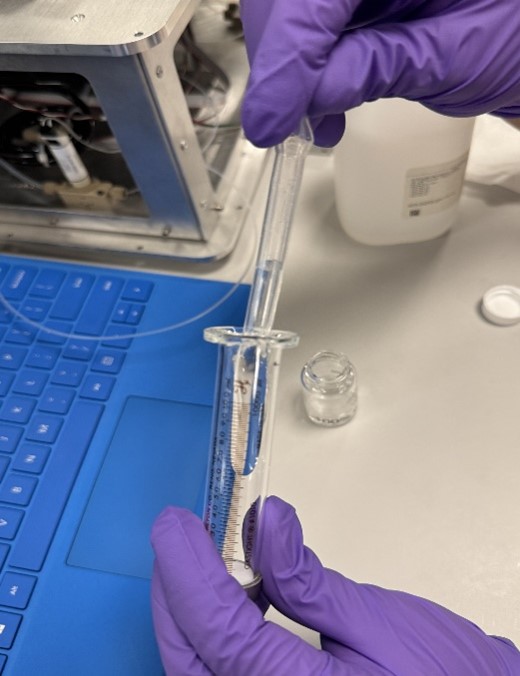

Angle the barrel and the dropper so that the sample can slowly flow down. Ideally, the sample should slowly flow down the wall of the barrel.

Note: It’s very important to slowly drain the sample from the dropper. This will help minimize loading bubbles.

Back Loading Protocol Img 9

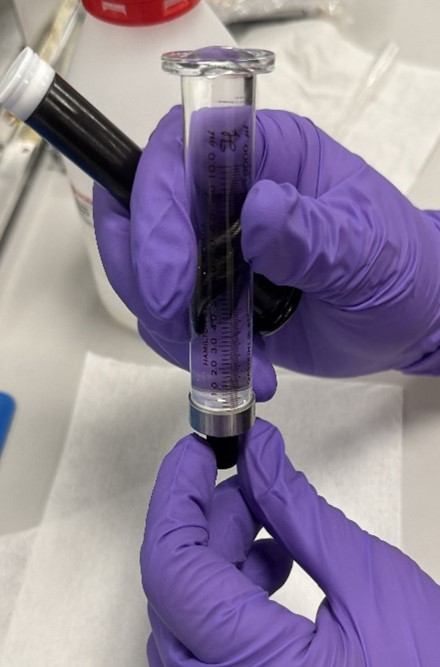

Repeat this process until there is sample at the very top of the syringe barrel. The sample should be flush with the opening.

Back Loading Protocol Img 11

Remove the cap from the botom of the syringe. Place some sort of cloth or something to catch sample from falling onto the table or surface.

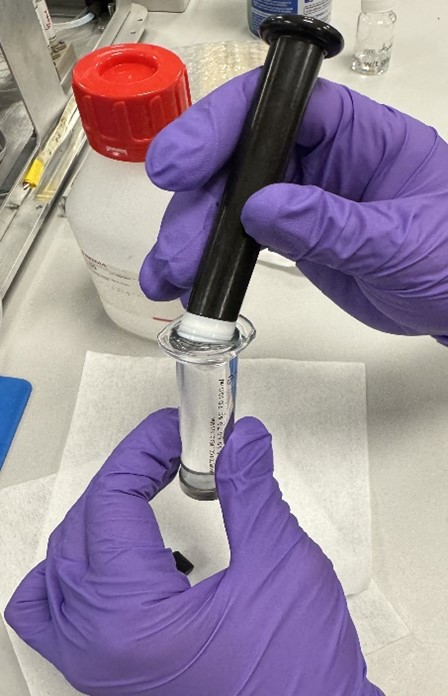

Take the plunger of the syringe and SLOWLY put it into the barrel at an angle to prevent a gap from forming.

Back Loading Protocol Img 12

Continue to push the plunger until it is securely in the barrel.

Back Loading Protocol Img 13

If bubbles are present, invert the syringe and leave it so that the bubbles can rise to the top.
Carefully remove the bubbles before running the sample.

Continue to run as normal.



---------------------------------------------------------
