microVISC™ — Portable, Small Sample Viscometer

microVISC is the ultimate solution for your routine viscosity measurements. This portable, small sample viscometer is intuitively designed so that users can start operating within one minute

c2_microVISC__1414448931_35945



VISCOMETER SPECIFICATIONS

Minimum Sample Volume 100 μL
Shear Rate Range s-1 1.7 – 5,800 1/s
Viscosity Range mPa-s (cP) 0.2 – 20,000
Temperature Range** 18 ~ 50 °C**
Temperature Stability ~+/- 0.07 °C
Repeatability Up To 0.5% of Reading
Accuracy 2% of Reading
Temperature Accuracy 0.15
Temperature Sensor Built-in
Non-Newtonians  Yes
Software Optional - Capabilities export data into excel & PDF



microVISC — PORTABLE, SMALL SAMPLE VISCOMETER

microVISC is the ultimate solution for your routine viscosity measurements. This portable and small sample viscometer is intuitively designed so that users can start operating within one minute. It employs RheoSense's patented Viscometer/Rheometer-on-a-Chip (VROC®) technology and offers accurate and repeatable viscometry measurements, using sample size as little as 100 microliters.

Battery-operated and portable, microVISC can be deployed at any laboratory location or in the field. microVISC has been adopted by leading companies worldwide as their choice for quick, easy, and rapid viscometric measurements. High precision and accuracy saves time and resources.

  • Ease-of-Use
  • Small Sample Volumes
  • Rapid Viscosity Measurements (Less than One Minute!)
  • Accuracy Up to 2% of Reading — Low Viscosity to High Viscosity
  • Repeatable Viscosity Measurement, 0.5% of Reading
  • Reading Resolution x 0.001 mPa-s
  • Portable — Weighs only 1.76 lb

microVISC — PORTABLE, SMALL SAMPLE VISCOMETER

  • Minimum Sample Volume: 100 µL
  • Shear Rate Range, s-1: 1.7 ~ 5,800
  • Viscosity Range, mPa-s (cP): 0.2 ~ 20,000
  • Temperature Range (with Optional Temperature Controller): 18 ~ 50 °C
  • Portable: Yes
  • Accuracy: 2% of Reading
  • Repeatability: 0.5% of Reading
  • Temperature Sensor: Built-In
  • Software: Optional - Capabilities export data into excel & PDF
  • Non-Newtonian: Yes
  • Temperature Accuracy: 0.15

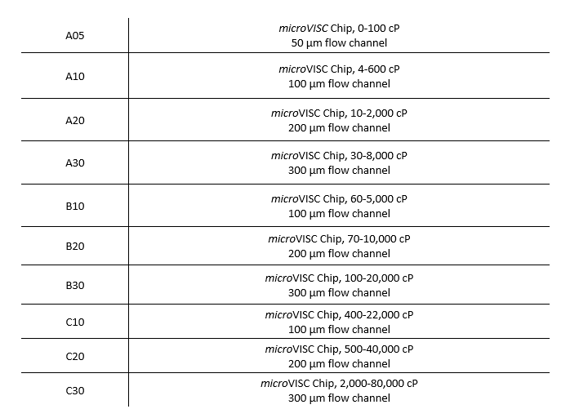

microVISC Viscometers come with multiple chip configurations that are dependent on your application and what you are trying to measure. Below is a list of chip types that are available:





Download Spanish Brochure

microVISC — PORTABLE, SMALL SAMPLE VISCOMETER

Portable, small sample viscometer Step 1: Load the sample into the disposable pipette
Small Sample Portable Viscometer Step 2: Mount the pipette & push RUN



Understanding Fluid Behavior — Measuring Absolute Viscosity

With VROC® Technology, RheoSense took the standard principles of rheometry and created a dynamic micro-sample viscometer by adding microfluidics while reducing the size of the device with MEMS (micro-electrical mechanical systems) manufacturing. The result was a new platform which offers capabilities that are well beyond the limits of conventional viscometers in not only the sample volumes required, but the measurement range and precision.

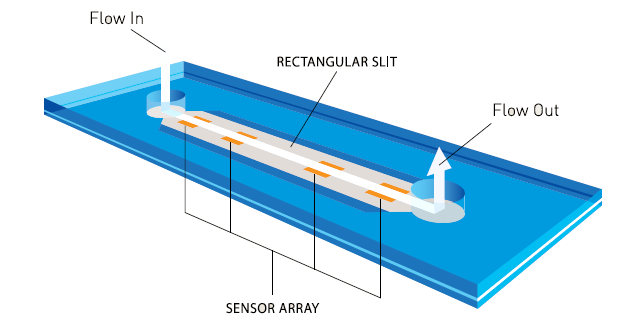

VROC Viscometer Rheometer on a Chip

Scientific Principle

The measuring cell or “chip” contains a rectangular slit flow channel constructed of borosilicate glass, with a uniform cross-sectional area. The sample is injected at a constant flow rate though the flow channel where multiple pressure sensors mounted within the base monitor the pressure drop from the inlet to the outlet. The pressure drop is correlated with the shear-stress at the boundary wall. The shear rate and shear stress are directly related to the geometry of the rectangular slit and the flow rate which allow for viscosity measurements.

Read more on our technology page!

microVISC — PORTABLE, SMALL SAMPLE VISCOMETER

YOUR ULTIMATE SOLUTION FOR....
  • BioPharmaceuticals & Protein Therapeutics
  • Consumer Goods — Household Care
  • Food & Beverages
  • Fracking
  • Hydrogels
  • Inks: conductive, ceramic, inks
  • Oils/lubricants
  • Ointments
  • Rechargeable Batteries
  • Research
    • QC
    • Glove Box Friendly
    • Optional Ability to Withstand Vaccuum Conditions
  • Stamping Oil Recovery
  • Suspensions
  • Viscosity
Visit Our Application Library


microVISC — PORTABLE, SMALL SAMPLE VISCOMETER

View FilemicroVISC Brochure    Size: (3.7 MB)
microVISC Brochure (SPANISH)
View FilemicroVISC Chip Options Size: (303 KB)
View FilemicroVISC Specifications    Size: (225.96 KB)
View File microVISC Temperature Control Specifications Size: (299 KB)



Download Spanish Brochure
