e-VROC® VISCOMETER — EXTENSIONAL VISCOSITY

e-VROC®, the viscometer capable of measuring apparent extensional viscosity, measures the extensional flow of polymer solutions to help you understand and optimize your industrial processes.

e-vroc extensional viscosity measurements



VISCOMETER SPECIFICATIONS

Minimum Sample Volume 500 μL
Viscosity Range 10 - 2,000 mPa-s
Extensional Rate 0.1 - 1000 s-1
Temperature Range 4 - 70 °C
Temperature Stability ~+/- 0.07 °C
Extensional Viscosity Yes
Accuracy ~+/- 0.5% Reading
Shear Sweeps Yes
Temperature Sweeps Yes
Typical Test Time <1 min



WANT TO LEARN MORE ABOUT EXTENSIONAL VISCOSITY?

Read more!

Want to learn about how extensional deformation or shearing has such a significant impact on industrial processes? Interested in what happens when you compare Xanthan and HPAM Solution Extensional Viscosity for enhanced oil recovery?

View our Application notes!

e-VROC® Viscometer — Extensional Viscosity

e-VROC®, the viscometer capable of measuring apparent extensional viscosity, measures the extensional flow of polymer solutions to help you understand and optimize your industrial processes. By monitoring the sample flow through a microfluidic contraction within the measuring cell, e-VROC® provides precise apparent extensional viscosity data.

Because extensional flows greatly impact the behavior of polymer molecules and asymmetric particles, understanding extensional viscosity allows you to improve your industrial processes.  With accurate data, you can gain a deep understanding of the composition of the fluid, predict the impact of that composition on your process, and optimize your process based on the characteristics revealed by the data.

e-VROC®, built with RheoSense’s patented VROC® technology, is an excellent tool for measuring both the extensional and shear viscosities simultaneously.

The viscometer measures the pressure upstream and downstream of a contraction using the MEMS pressure sensors, and it registers changes in the flow. The fluid undergoes an almost constant extension through the contraction/expansion, enabling the calculation of the apparent extensional viscosity.

eVROC chip technology

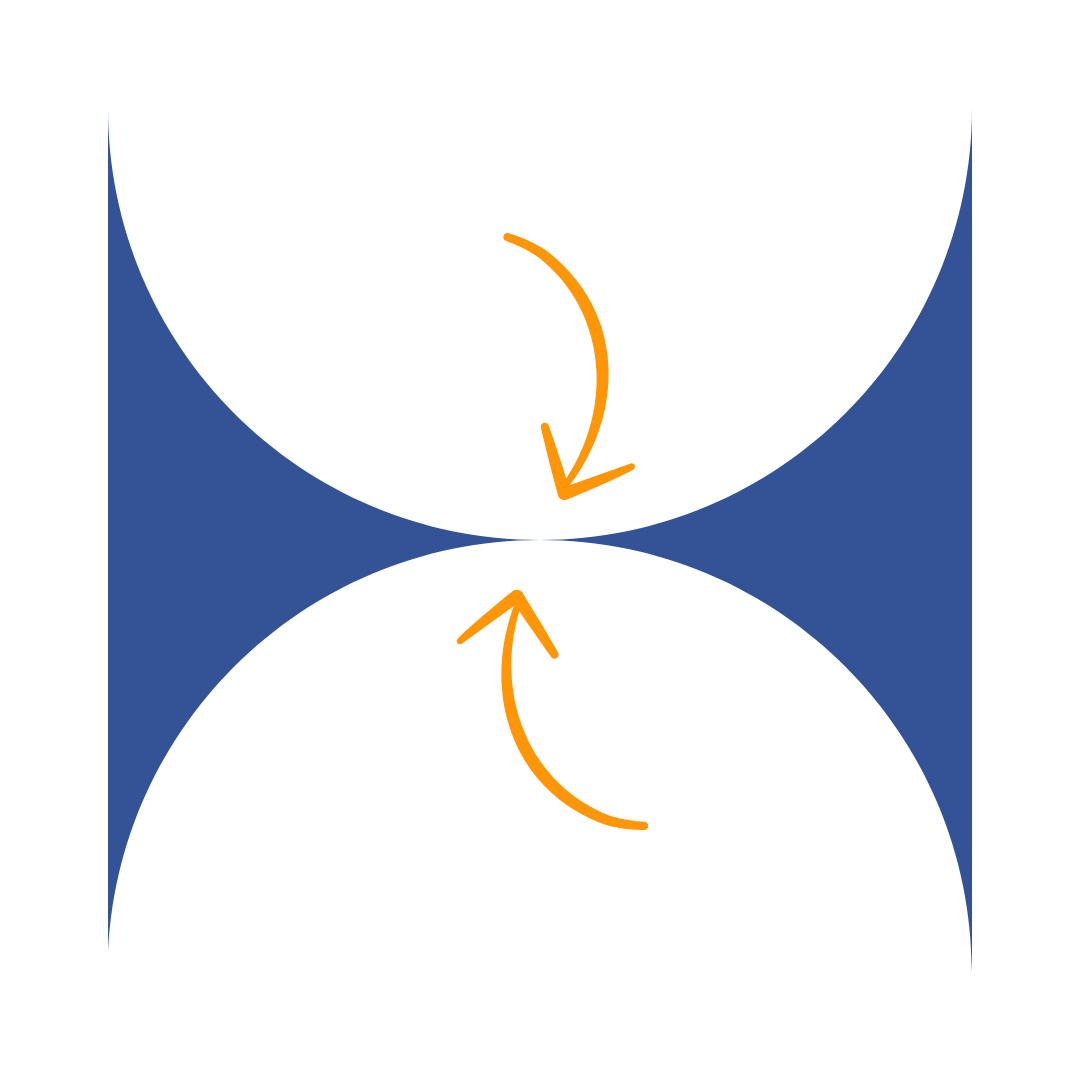

e-VROC® chip is engineered with a microfluidic channel of uniform width and depth. It has hyperbolic contraction/expansion zone in the middle of the channel and four monolithically integrated MEMS pressure sensors (two in the upstream and two in the downstream of the contraction/expansion zone). A liquid entering the channel first experiences shear flow in the straight channel and then experiences a uniform extension in the contraction zone as illustrated by the elongational shape change of the square in the schematic below.

Compared to other methods of extensional viscosity measurement, e-VROC® allows the measurement of extensional viscosity at high extensional rates.

e-VROC® VISCOMETER — EXTENSIONAL VISCOSITY

e-VROC® provides extensional viscosity data based on monitoring the sample flow through a microfluidic contraction within the cell. By measuring the pressure upstream and downstream of a contraction using the MEMS pressure sensors, the change in the flow is registered.

With the same automated temperature and shear rate sweep capabilities as m-VROC®e-VROC® will provide extensional viscosity measurements within a minute!

  •           Minimum Sample Volume – 500 µL
  •           Wide Dynamic Viscosity Range: 10 ~ 2,000 mPa-s
  •           Temperature specification of 4 °C – 70 °C
  •           Extensional Rate: 0.1 ~ 1,000 s-1
  •           No Evaporation – No Air-Liquid Interface
  •           Characterization of Newtonian and Non-Newtonian Solutions
  •           Accuracy up to 2% of Reading
  •           Repeatable Measurement up to 0.5% of Reading

e-VROC® VISCOMETER — EXTENSIONAL VISCOSITY

VISCOMETER PRINCIPLE

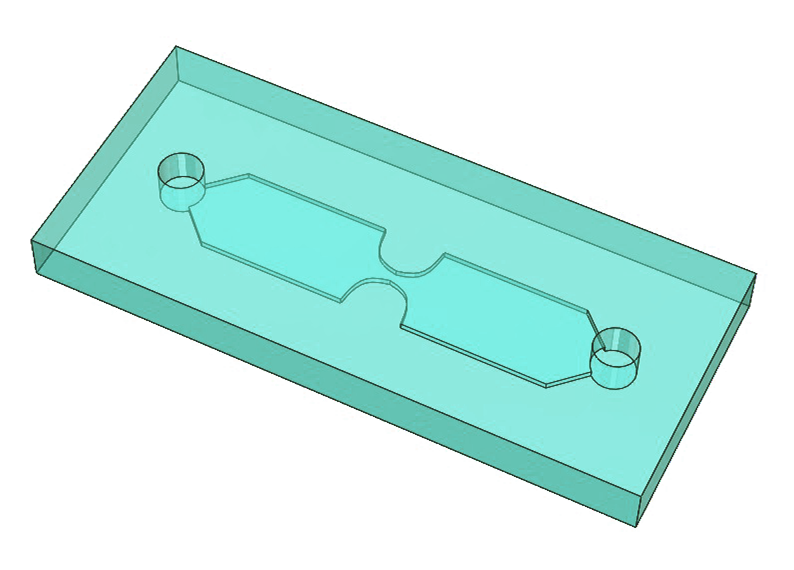

The e-VROC® chip is engineered with a microfluid channel of uniform width and depth. It has hyperbolic contraction/expansion zone in the middle of the channel and four monolithically integrated MEMS pressure sensors (two in the upstream and two in the downstream of the contraction/expansion zone). A liquid entering the channel first experiences shear flow in the straight channel and then experiences a uniform extension in the contraction zone as illustrated by the elongational shape change of the square in the schematic below.

eVROC_with_edges_(green)

Compared to other methods of extensional viscosity measurement, e-VROC®allows the measurement of extensional viscosity at high extensional rates. The system measures the pressure upstream and downstream of a contraction using the MEMS pressure sensors, and it registers changes in the flow. The fluid undergoes an almost constant extension through the contraction/expansion, enabling the calculation of the extensional viscosity

Testing a Sample with e-VROC® Viscometer

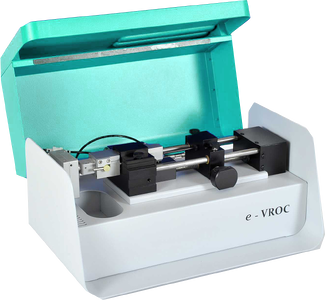

loading sample into e-VROC Step 1: Load the syringe with your sample
Tighten the syringe into the chip enclosure on e-VROC Step 2: Tighten the syringe into the chip enclosure and secure it inside the thermal jacket
testing a sample with e-VROC Step 3: Bring down the top of the thermal jacket enclosure and lock it by turning the black thumb screw clockwise— you are ready to measure your sample!

e-VROC® VISCOMETER — EXTENSIONAL VISCOSITY

KEY APPLICATIONS

e-VROC® is a good choice for the measurement of fluids with certain extensional viscosity properties, such as polymer applications, which exhibit thickening beyond the Trouton ratio found for Newtonian fluids.

Applications include:

  • Fiber Spinning
  • Paint Rolling
  • Roll Coating
  • Inkjet Printing
  • Spraying
  • Electrospinning
  • Enhanced Oil Recovery
  • Drag Reduction
  • Food Processing

 Visit our Application Library

WANT TO LEARN MORE ABOUT EXTENSIONAL VISCOSITY?

Want to learn about how extensional deformation or shearing has such a significant impact on industrial processes? Interested in what happens when you compare Xanthan and HPAM Solution Extensional Viscosity for enhanced oil recovery?

View our Application notes!
