m-VROC® Viscometer vs. Cone & Plate Rheometer

Application Note Download

A comprehensive comparison study of VROC® technology powered viscometer and cone & plate rotational rheometer measurements.

Viscosity of monoclonal antibodies

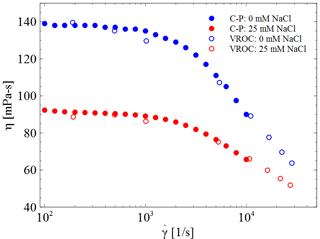

Figure 1. Comparison for the viscosity of monoclonal antibodies measured with m-VROC® viscometer and Cone & Plate rheometer [1].

In this application note, we present three sets of data supporting excellent correlation between cone & plate rotational rheometers and m-VROC® viscometers for the measurement of viscosity as a function of shear rate. Additionally, a brief description of the most important features and major differences between these two instruments is provided.

m-VROC® key features include:

  • Accuracy: 2% of Reading
  • Repeatability: 0.5% of Reading
  • Small Sample Volume: 20 µL
  • Shear Viscosity Range: 0.2 - 100,000 mPa-s
  • Shear Rate Range: 0.5 - 1,400,000 1/s
  • Temperature Control: 4-70°C
