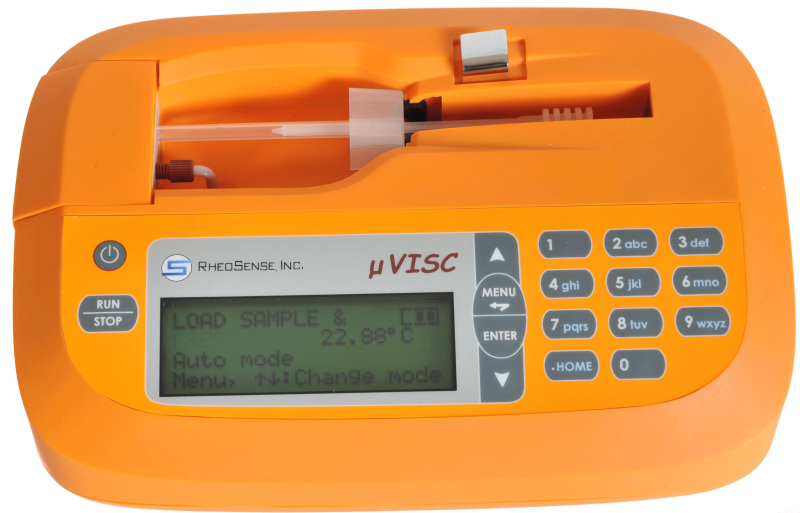

microVISC-m™ — Portable, Small Sample Viscometer for Oil Analysis

microVISC-m is the ultimate solution for your routine oil viscosity measurements. This portable, small sample viscometer is intuitively designed so that users can start operating within one minute

microVISC (oc)-1



VISCOMETER SPECIFICATIONS

Minimum Sample Volume 100 μL
Viscosity Range 1-3,500 cSt
Operating Range 18 - 40 °C
Output Range 20 - 100 °C
Humidity Range 0 ~ 90%, Non-condensing
Accuracy ~+/- 2% Reading
Repeatability ~+/- 0.5% Reading
Typical Test Time <1 min
Standards Correlates to ASTM D445



microVISC-m — PORTABLE, SMALL SAMPLE VISCOMETER FOR OIL ANALYSIS IN LAB OR FIELD

microVISC-m viscometer is widely recognized in the industry as the fastest, easiest, and most cost effective way to assess the overall health of lubricating oil.

Early detection of problems in lube oil is essential for machinery, bearings, generators, or any rotating equipment. Lube oil can be affected in many ways — oxidation can occur, it can become contaminated from fuel, water, or refrigerant leakage, or it can mix with exhaust from the pistons introducing soot. Additives in the oil also breakdown over time. When lubricating oil quality declines and costly equipment failures occur.

microVISC-m measures the viscosity of an oil and uses ASTM methods to report the kinematic and absolute viscosity of a sample at the desired reference temperature (s), typically 40 ºC, 50 ºC, or 100 ºC, allowing for easy determination of oil health. The rectangular slit method employed in the measurement is incredibly fast and easy to use with little to no training. Data generated with microVISC-m is also stored with date and time stamps for traceability.

microVISC-m  is a handheld, battery-operated analyzer that is ideal for lab or remote field measurements. The re-chargeable battery can perform up to 100 measurements in between charges, giving the unit true portability. Up to eight different types of oil can be pre-programmed into microVISC-m at a time, which allows operators to recall setups at the push of a button. Disposable pipettes reduce the risk of sample contamination, and an automated cleaning capability means no clean up between samples.

microVISC-m — PORTABLE, SMALL SAMPLE VISCOMETER FOR OIL ANALYSIS IN LAB OR FIELD

  • Minimum Sample Volume: 100 µL
  • Viscosity Range: 1 - 3,500 cSt
  • Operating Range 18 - 40 °C
  • Output Range: 20 - 100 °C
  • Humidity Range: 0 ~ 90%, Non-condensing
  • Accuracy: ~+/- 2% of Reading
  • Repeatability: ~+/- 0.5% of Reading
  • Typical Test Time: <1 min
  • Standards: correlates with ASTM D445
  • Non-Newtonian: Yes

microVISC-m — PORTABLE, SMALL SAMPLE VISCOMETER FOR OIL ANALYSIS IN LAB OR FIELD

microVISC-m Portable, small sample viscometer Step 1: Load the sample into the disposable pipette
measuring samples with microVISC-m Step 2: Mount the pipette & push RUN



microVISC-m — PORTABLE, SMALL SAMPLE VISCOMETER FOR OIL ANALYSIS IN LAB OR FIELD

YOUR ULTIMATE SOLUTION FOR....
  • Remote mining machinery and equipment
  • Naval vessels with aviation and marine lubricants
  • Compressors, bearings, and rotating equipment on ships
  • Fleet maintenance services for trucks, tanks, buses, and other vehicles
  • Transformer oils for power companies
  • Small and medium sized diesel engines
  • Offshore wind turbines where visits are expensive and infrequent
  • Preventive maintenace in stationary factories and installations
Visit Our Application Library
New Call-to-actionDownload our app note on how microVISC-m viscometer utilizes ASTM D341 Calculations for viscosity measurements.


microVISC-m — PORTABLE, SMALL SAMPLE VISCOMETER FOR OIL ANALYSIS IN LAB OR FIELD
