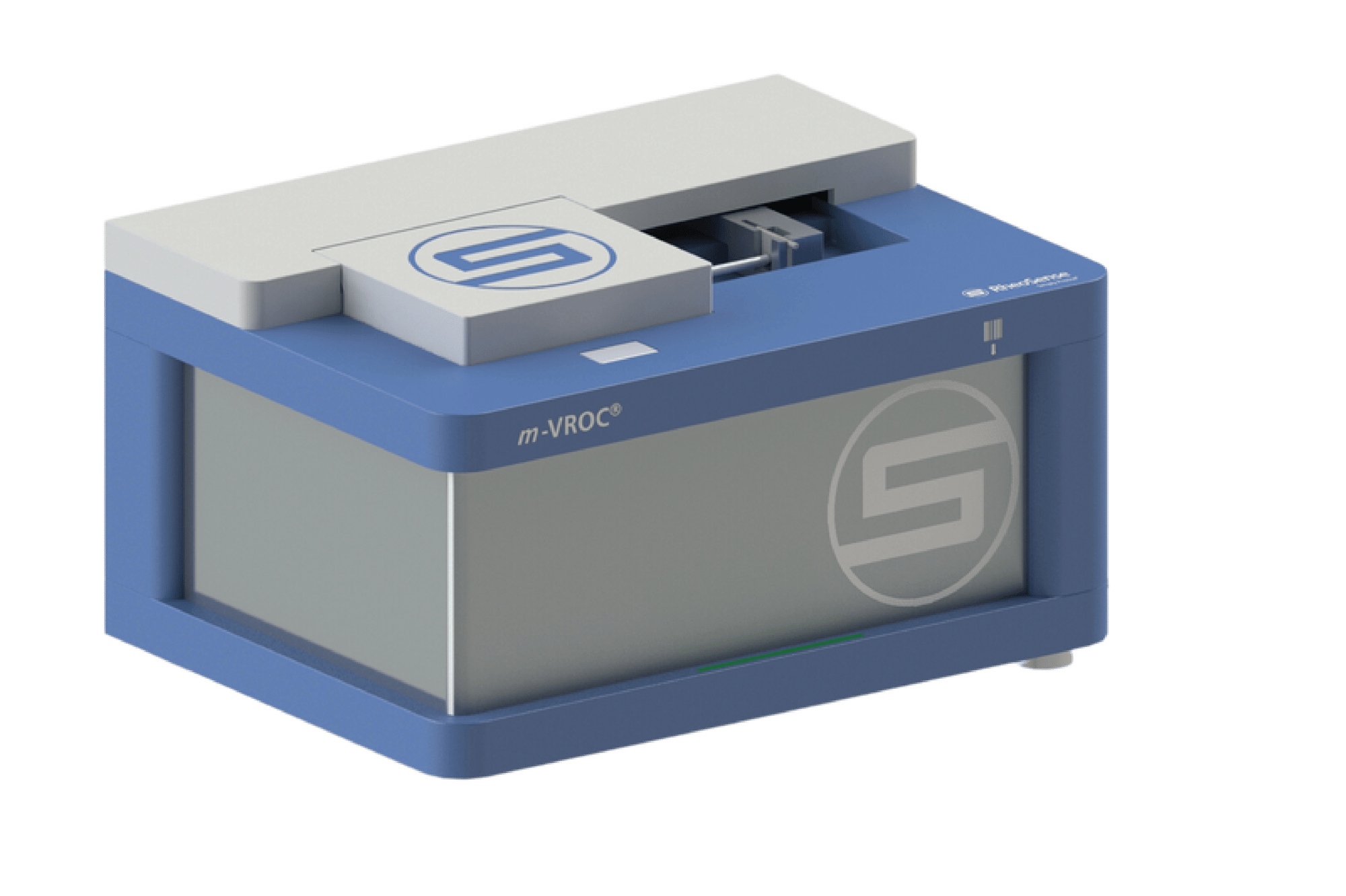

m-VROC® II S Viscometer — Controlled Shear Rates and Small Sample Volume

m-VROC II s is newest simplified suboption to our m-VROC II, our leading semi-automated, small sample viscometer. The S model features the same wide dynamic range (high shear rate viscosity measurements up to 2,020,000 s-1) you expect from the m-VROC II with as little as 50 microliters of sample.


  • Samples as small as 50 µL
  • Newtonian & non-Newtonian
  • High shear rates

m-VROC II S Viscometer — Controlled Shear Rates and Small Samples

m-VROC II s is the next generation of leading semi-automated, small sample viscometer. Capable of the most demanding applications including small sample protein therapeutics, m-VROC II S features the widest dynamic range viscosity measurement with as little as 50 microliters of sample.

  • Accuracy: 2% of Reading
  • Repeatability: 0.5% of Reading
  • Viscosity Range: 2 ~ 100,000 mPa-s (or cP)
  • Shear Rate Range: 0.86 ~ 2,020,000 s -1
  • Small Sample Volume: 15 µL
  • Viscometer Dimensions:  11.6" x 16" x 9"

This product can be configured based on your applications and there are multiple chip options you can choose from. Here is the chip selection guide!

m-VROC II S Viscometer Controlled Shear Rates and Small Samples

Our newest VROC model viscometer is the tool you need for early sample characterization and candidate screening! Measuring the smallest sample volume to date (15 µL), incorporated temperature control, automated cleaning, and shear rate and temp sweeps, make this the ideal budget solution for early sample characterization, candidate screening and injectability.

Shear Rate Sweep
Temperature Sweep
Software Compatibility
21CFR Part 11
Temperature Sensor Built-In

Chips Specific to Your Application


  • Minimum Sample Volume – 50 µL
  • Characterization of Newtonian and Non-Newtonian Solutions
  • Wide Viscosity Range:  0.4 ~ 200,000 mPa-s (or cP)
  • Temperature specification of 4°C – 70°C*
  • Accuracy up to 2% of Reading
  • Repeatable Measurement up to 0.5% of Reading
  • Compatible chips can be swapped out and automatically cleaned with the RheoSense Chip Cleaning Station

*Temperature ranges can be extended
*Chip depths can be customized based on your application!


Understanding Fluid Behavior — Measuring Absolute Viscosity

With VROC® Technology, RheoSense took the standard principles of rheometry and created a dynamic micro-sample viscometer by adding microfluidics while reducing the size of the device with MEMS (micro-electrical mechanical systems) manufacturing. The result was a new platform which offers capabilities that are well beyond the limits of conventional viscometers in not only the sample volumes required, but the measurement range and precision.

VROC Viscometer Rheometer on a Chip

Scientific Principle

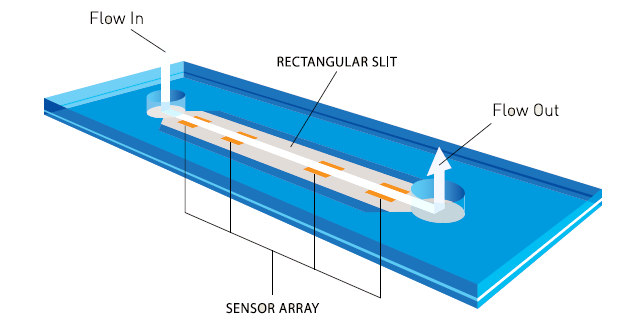

The measuring cell or “chip” contains a rectangular slit flow channel constructed of borosilicate glass, with a uniform cross-sectional area. The sample is injected at a constant flow rate though the flow channel where multiple pressure sensors mounted within the base monitor the pressure drop from the inlet to the outlet. The pressure drop is correlated with the shear-stress at the boundary wall. The shear rate and shear stress are directly related to the geometry of the rectangular slit and the flow rate which allow for viscosity measurements.

Read more on our technology page!

m-VROC II Viscometer Controlled Shear Rates and Small Samples



m-VROC II Viscometer  — Viscosity Measurements with Controlled Shear Rates and Small Samples

Have Your Samples Tested By Our Experts

Our viscosity experts will help create an appropriate testing protocol and complete a wide range of tests to gather the data you need.
